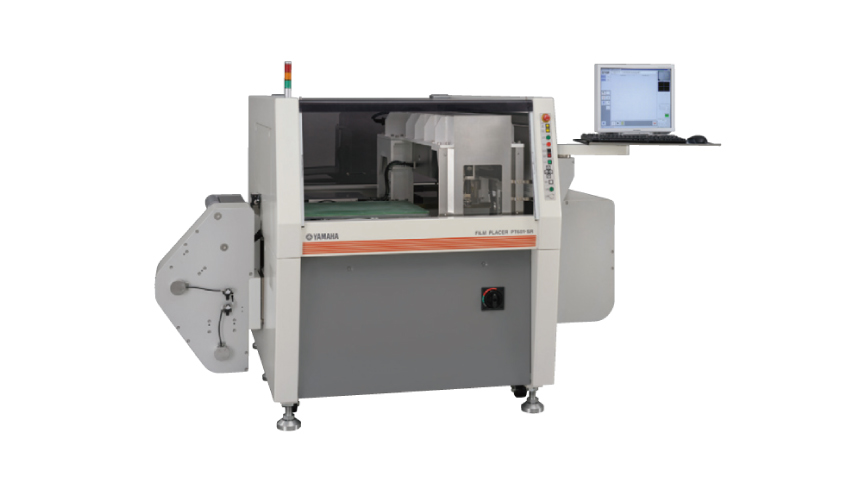

Film PlacerShield film placers

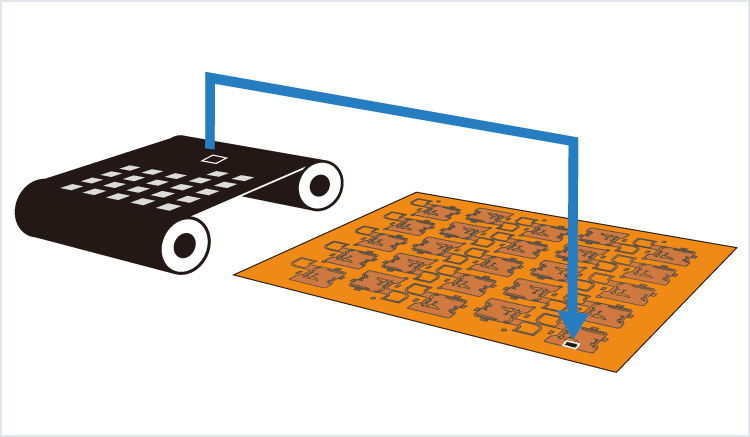

These machines apply individual pieces cut from a shield film on a roll and apply them to sheet-shapedFPCs.
These film placers eliminate the need to apply protective film for shield films, and can perform the cutting and placement work directly, helping to reduce costs.
They can perform placement at high speed (1.5sec/piece) with high precision (+/-50μm).
Workpiece type: Applied: Various shield films, Applied to: Various FPCs
High-speed, high-precision shield film placers for FPCs
Here are some examples of workpieces for high-precision machining:
- Rigid flexible PCBs
- TAB and COF
- LED boards
- Touch panel materials
Product sample videos
Here you can watch videos prepared to help you better understand some of what Yamaha Fine Tech's precision machining products are capable of.
Our facilities include a demo room to allow customers to come and perform evaluations and tests on our equipment. Please contact us to find out more.
Our catalog is not currently available in a downloadable format.
Please use the following form below if you would like to receive a catalog.
This page lists contact information for inquiries film placer (shield film placers).
