Products

Placers(Placers)

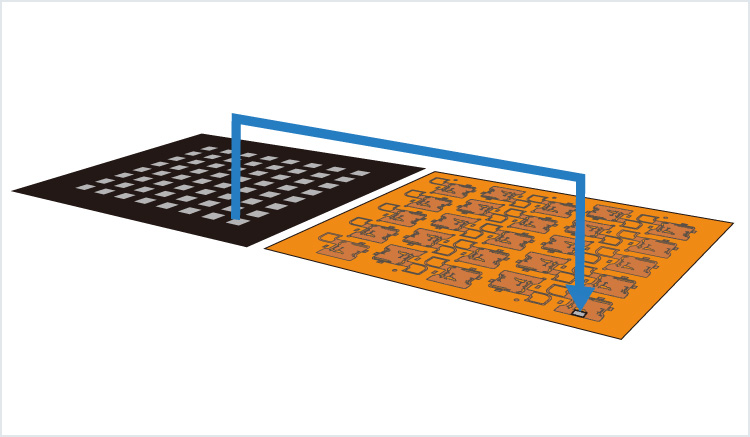

These machines place a stainless steel support plate on the flexible printed boards to be worked on.
Utilizing the features of the support plates, even irregular plates can be applied at high speeds (1.1sec/piece) with high precision (+/-50μm).

Workpiece type: Applied: Various support plates, Applied to: Various FPCs

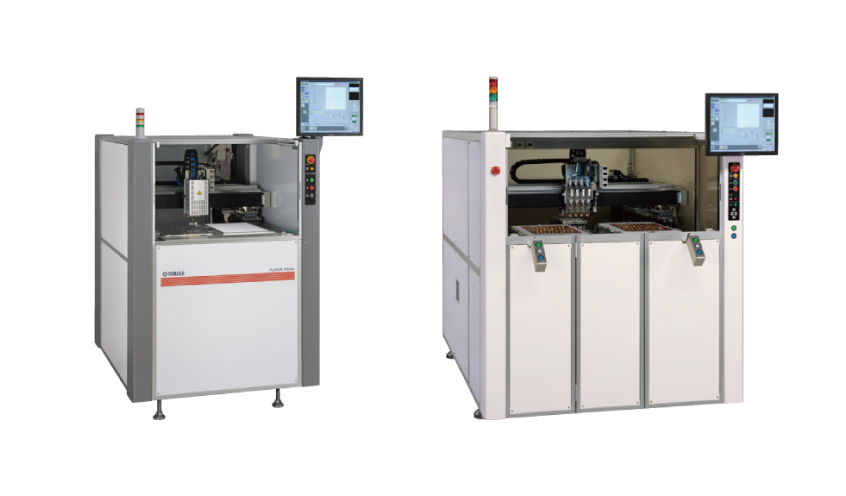

Line up

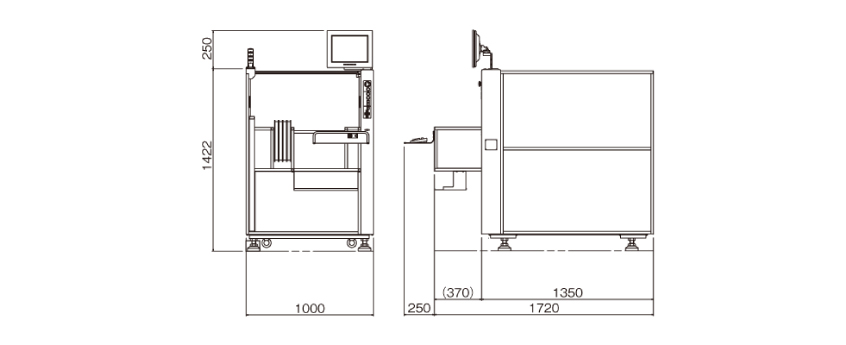

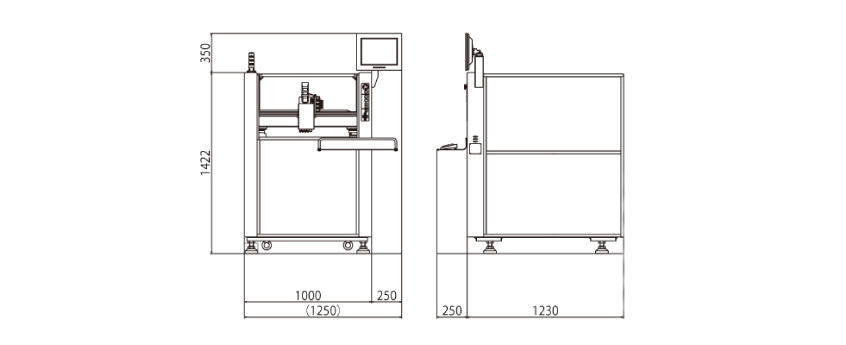

  • PS404
    PS404

    Support plate supply method: Manual (*)
    High-speed, high-precision support plate placers for FPCs
    * Options available

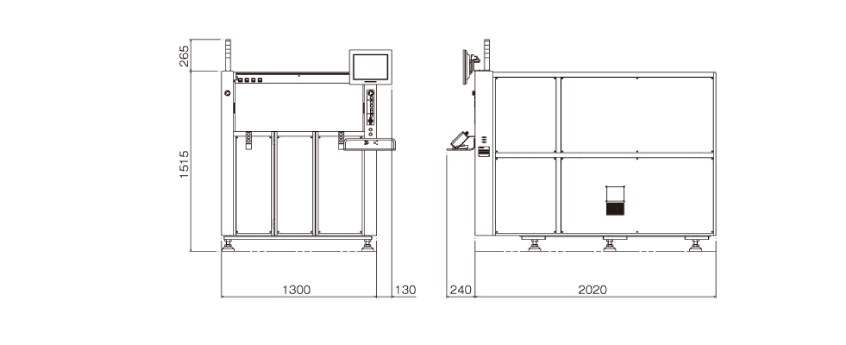

  • PS504
    PS504

    Support plate supply method: Magazine type
    High-speed, high-precision support plate placers for FPCs


Factory visits

Our facilities include a demo room to allow customers to come and perform evaluations and tests on our equipment. Please contact us to find out more.

Catalog download

Our catalog is not currently available in a downloadable format.
Please use the following form below if you would like to receive a catalog.
