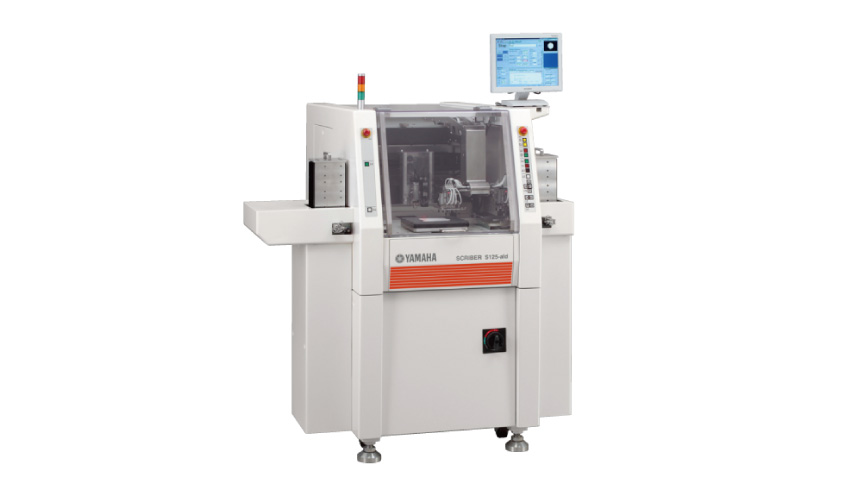

ScriberScribers for ceramic PCBs

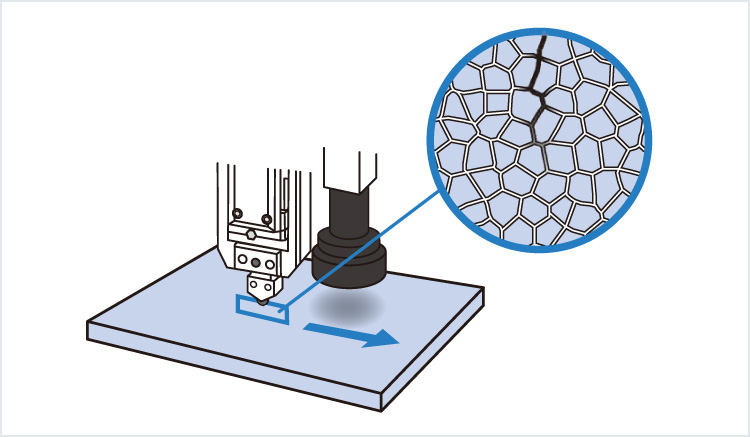

These machines use diamond cutters to scribe ceramic PCBs after baking.
Scribers enable clean division of boards without material loss or the effects of cutting fluids at high speeds (top speed of 500mm/sec) and with high precision (+/-30μm).

Workpiece type: Baked ceramic PCBs

Line up

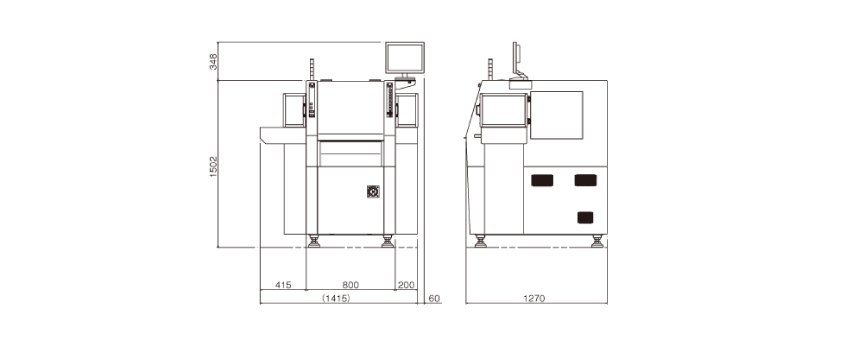

  • S125-ALD
    S125-ald

    Load/ Unload: Automatic
    Scribers for ceramic PCBs

  • S230
    S230

    Load/Unload: Manual
    Scribers for ceramic PCBs


Factory visits

Our facilities include a demo room to allow customers to come and perform evaluations and tests on our equipment. Please contact us to find out more.

Catalog download

Our catalog is not currently available in a downloadable format.
Please use the following form below if you would like to receive a catalog.

Inquiries regarding Scriber (Scribers for ceramic PCBs)

This page lists contact information for inquiries Scriber (Scribers for ceramic PCBs).

    • +81-53-467-3601(FA Division)
    • +81-53-467-3613
    • Contact us
  • S125-ald
  • S230
